3.97incn 480*800 TFT LCD Module Display With Capacitive Touch Screen Panel
Products Application field:
Audio product Medical Equipment
Industrial product(watermeter, electronicmeter,Equipment )
Automobiles Sports Equipment Watches Household appliance(air condition/wash machine/electronic cooler/ refrigerator/disinfection cabinet/ wash bowl machine/ calculator /electronic scale etc.)
| Feature | Specification | Unit |
| Display Spec | Brand | Wise | - |
| Size | 3.97 | inch |
| Resolution | 480*800 | dots |
| Pixel pitch | 0.108 (H) *0.108(V) | mm |
| Display Mode | IPS/NB | - |
| Viewing Direction | All | o'clock |
| Gray Scale Inversion Direction | All | o'clock |
| Luminance | 300 | cd/m2 |
Mechanical

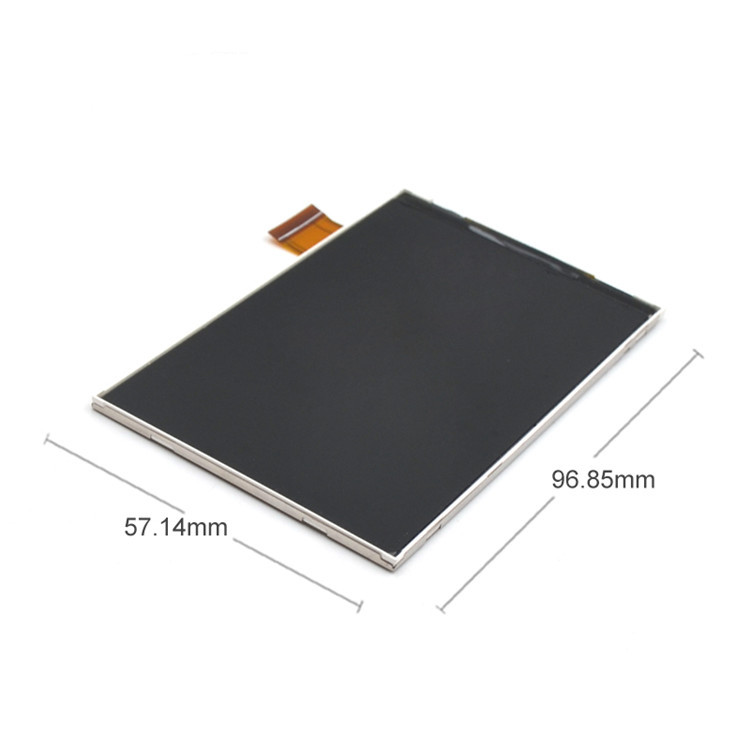

Characteristics | LCM (W * H * D) | 57.14*96.85*1.80 | mm |
| Active Area (W * H ) | 51.84*86.40 | mm |
| With /Without TP | Without TP | - |
| LED Numbers | 8-LED | pcs |
| Operation temperature | -20~+70 | ºC |
| Storage temperature | -30~+80 | ºC |
Electrical
Characteristics | Interface | RGB-18BIT/39PIN | - |
| LCM Power Supply | 2.8 | V |
| LED Power Supply | 24.0 | V |
| Color Depth | 262K | - |
| LCM Driver IC | ILI9806E | - |
| CTP Driver IC | - | - |
| Rich experience | Good knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client |
| Quality Assurance | Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment |
| Fast response | Quickly realize your customized ideas, and have a sample ready in short time |
| Low MOQ | Depends on product |
| Stable supply | 1~10 years supply period |
| Extensive range | Providing complete solution from Mono to Color LCD module, Optical bonding between display to cover glass as well as cover glass to touch screen |
| Large production capacity | Operation capacity 2KK monthly |
| Quality guarantee | RoHS compliant |
| Management | ISO 9001:2008, ISO 14001:2004 |
Quality Control :
Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!
We will test goods strictly according to our standard inspection before shipment.
If exceed this standard, clients can ask for returning and get new.
FAQ:
Q: Do you have data sheets?
A: Yes, we have data sheets of our LCD modules. You may ask our sales for help.
Q: How can I know which size is suitable for our application?
A: Please ask your engineer for guidance to make sure the size of your product(length*width*thickness in mm) and the
function of it. Based on the above information, we will suggest the ideal size of the LCD module for your product.
Q. How do I work with you on Customized products?
A: Firstly please provide us the description of your special requirements, any Drawing or Specification---Our engineers will work out
the compatible solution and also mould cost (if any)---We provide Drawing and Specification for Approval---We provide samples
for approval after reliability test and aging test---We make modification if necessary---We do small quantity of
trial order (if required)---We do mass production.
Q.How long is the warranty and what is your after-sales service?
A: Usually 12 Months.
If there is any defect within 12months from receiving products, please contact our sales, we will respond within 24hours. If we require
any product to be returned to us, the shipping cost will be fully paid by us.
Product Tags:
|
|

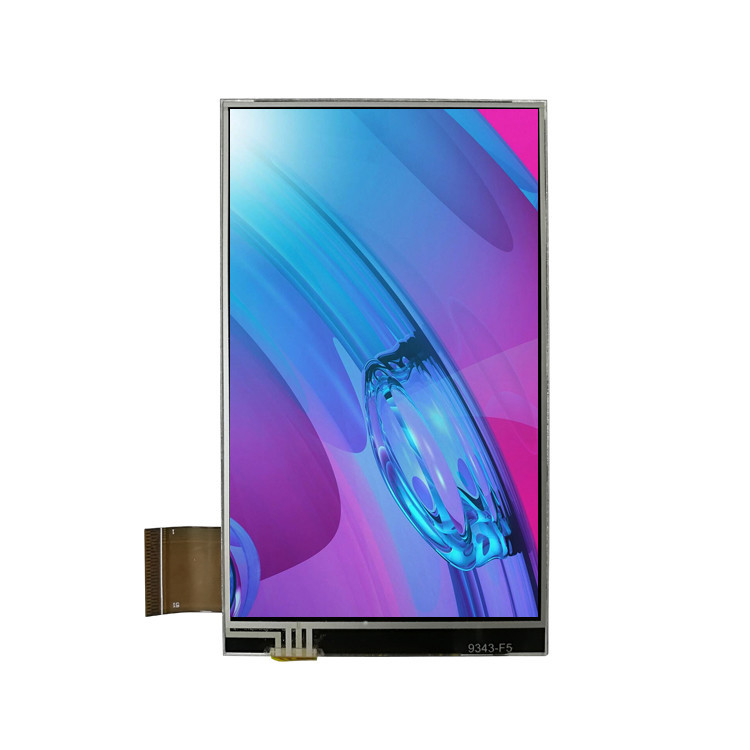

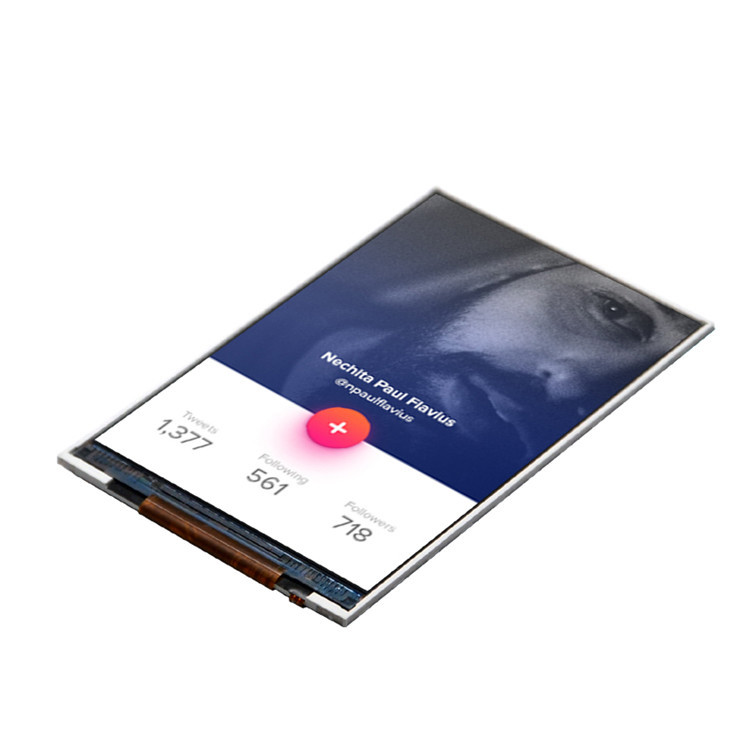

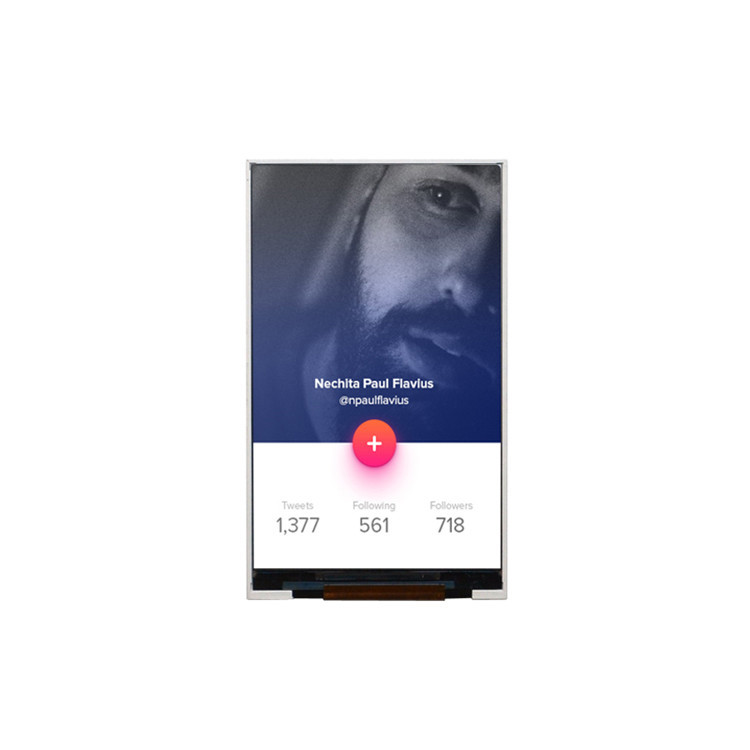

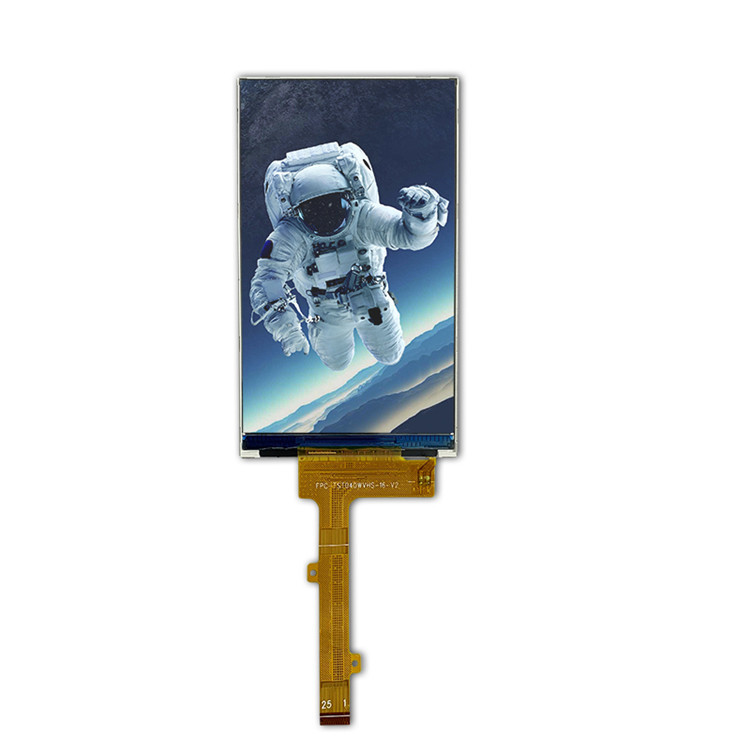

3.97 Inch 480x800 TFT LCD Module Display With Capacitive Touch Screen Panel Images
|
